Cordless tools

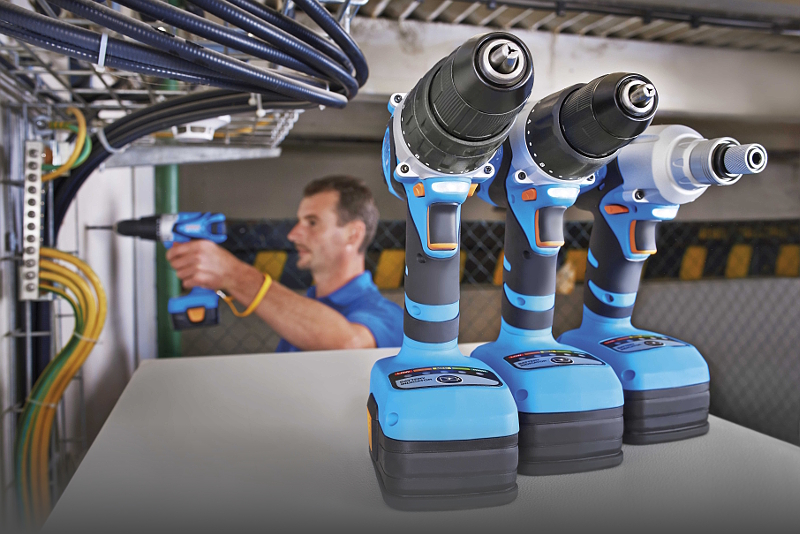

From the moment of its development at the beginning of the 70s of the last century, when the first cordless drill was designed for the needs of the US space program and tested successfully in the orbit, the cordless tools have undergone one of the most dynamic transformations in the whole history of the power hand tools.

The cordless devices and tools had to wait for their “meteoric” rise and the real boom when they began to be applied in many industrial production branches. The more and more progressive industrial technologies bring new possibilities for cordless tools applications and at the same time they are more and more demanding to robust, heavy-duty and sophisticated machines and devices able to withstand severe or even extreme working conditions.

The latest NAREX cordless devices and tools meet these conditions! Besides launching a pair of the most heavy-duty impact drivers/wrenches globally, NAREX can be proud of a wide range and complete programme of other cordless devices – screwdrivers, drill screwdrivers and impact screwdrivers, covering (besides the drivers mentioned above) a wide range of working applications and belonging for the whole decades the flagship of this traditional brand.

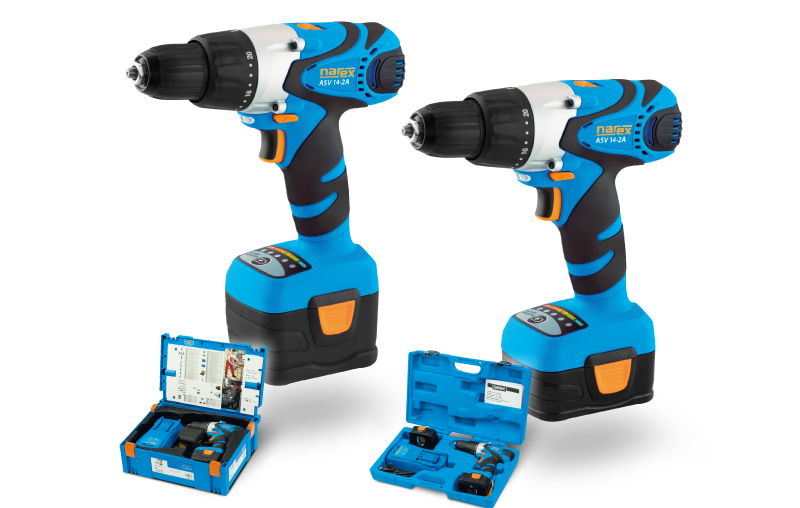

Cordless drill screwdrivers 14,4 V

ASV 14-2A

Technical specification
Battery voltage / capacity	14,4 V / 1,5 Ah	14,4 V / 3,0 Ah
Battery charging time	cca 25 min	cca 45 min
Max. torque	54 Nm	54 Nm
Max. ø of drilling in steel / wood	10 / 35 mm	10 / 35 mm
No-load speed, speed 1/2	0–460 / 0–1 600 min^-1	0–460 / 0–1 600 min^-1
Chuck span	0,8–10 mm	0,8–10 mm
Spindle thread	1/2"-20 UNF	1/2"-20 UNF
Weight	1,6 kg	1,8 kg

Suitable for industrial production, assembly and maintenance
A new stronger motor and a robust all-metal gearbox increase the tightening /torque performance and extend service life of the device
The aluminium gearbox casing and the multi-seated spindle increase stability and rigidity of the whole gear unit
2-speed gearbox allows for selection of the optimum speed range depending on the type of material and nature of work performed
Electronics with protection from overload protects the motor and extends its service life
21-level torque setting facilitates tightening and improves continuity of labour
New Li-Ion batteries with a higher capacity offer a longer battery lifetime; no memory effect, environment friendly
Integrated LED for working zone lighting

	ASV 14-2A 1,5 Ah	ASV 14-2A 3,0 Ah
Orded No.	65 404 823	65 404 824
Rec. retail price excl. VAT	187,50 €	273,33 €

Scope of supply:2 accumulator batteries, charger AN-UNI C, transport case or systainer

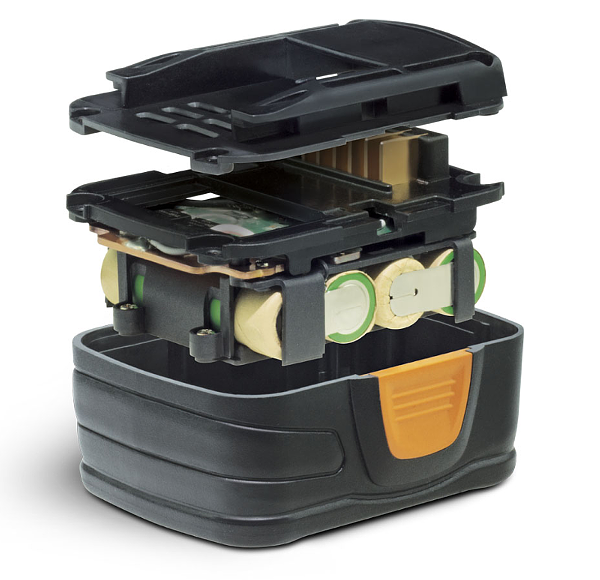

New and robust accumulator battery designis even more resistant. The internal self-supporting frame protects the batteries from impacts, shocks, separates them from the external casing (subject to high stress) and improves their cooling; the top bi-component guard creates protection of the control battery electronics and strengthens and protects the contact zone. The built-in control electronics protects the batteries from overload, overheating or irreversible discharge, thus creating the optimum conditions for the longest possible service life of the accumulator battery.

Cordless drill screwdrivers 18 V

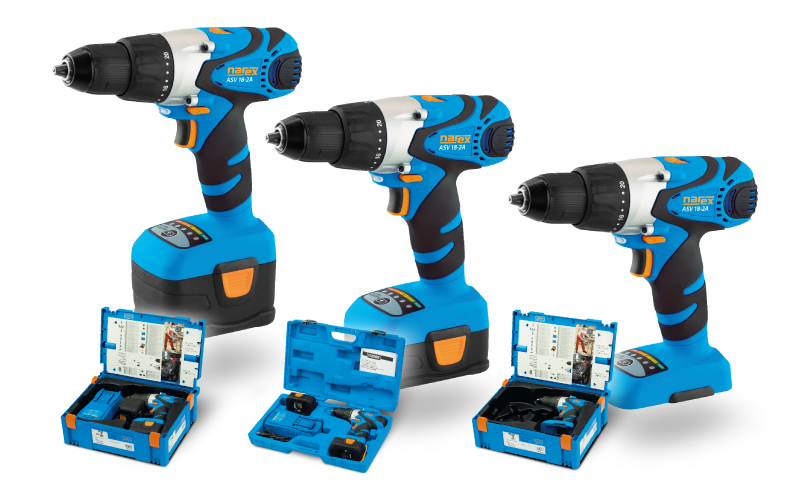

ASV 18-2A

Technical specification
Battery voltage / capacity	18,0 V / 1,5 Ah	18,0 V / 3,0 Ah
Battery charging time	cca 25 min	cca 45 min
Max. torque	60 Nm	60 Nm
Max. ø of drilling in steel / wood	13 / 40 mm	13 / 40 mm
No-load speed, speed 1/2	0–460 / 0–1 600 min^-1	0–460 / 0–1 600 min^-1
Chuck span	1,5–13 mm	1,5–13 mm
Spindle thread	1/2"-20 UNF	1/2"-20 UNF
Weight	1,8 kg	2,2 kg

Suitable for industrial production, assembly and maintenance
A new stronger motor and a robust all-metal gearbox increase the tightening /torque performance and extend service life of the device
The aluminium gearbox casing and the multi-seated spindle increase stability and rigidity of the whole gear unit
2-speed gearbox allows for selection of the optimum speed range depending on the type of material and nature of work performed
21-level torque setting facilitates tightening and improves continuity of labour
Electronics with protection from overload protects the motor and extends its service life
New Li-Ion batteries with a higher capacity offer a longer battery lifetime; no memory effect, environment friendly
Integrated LED for working zone lighting

	ASV 18-2A 1,5 Ah	ASV 18-2A 3,0 Ah	ASV 14-2A Basic
Orded No.	65 404 827	65 404 828	65 404 826
Rec. retail price excl. VAT	205,00 €	291,66 €	116,66 €

Scope of supply: ASV 18-2A – accumulator batteries, charger AN-UNI C, transport case or systainer; ASV 18-2A Basic – basic device without accumulator batteries and charger, systainer

A new intelligent charger monitors condition and state of each battery continuously and adapts the optimum conditions of charging – controls the charging current, voltage and temperature so that the battery may be charged carefully to the 100% of its usable operating capacity.

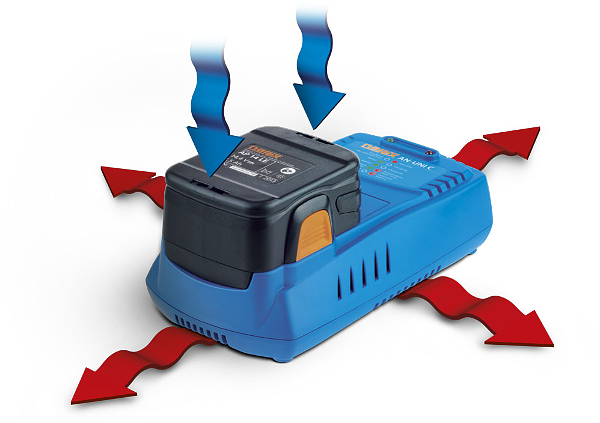

Air-Forced Cooling System (AFCS) ensures circulation of cold air between the battery and the charger, thus accelerating the process of charging, improving quality of charging and at the same time protecting the batteries themselves. The plug-in system guarantees perfect contact engagement even in vertical position.

Cordless impact screwdrivers
14,4 V

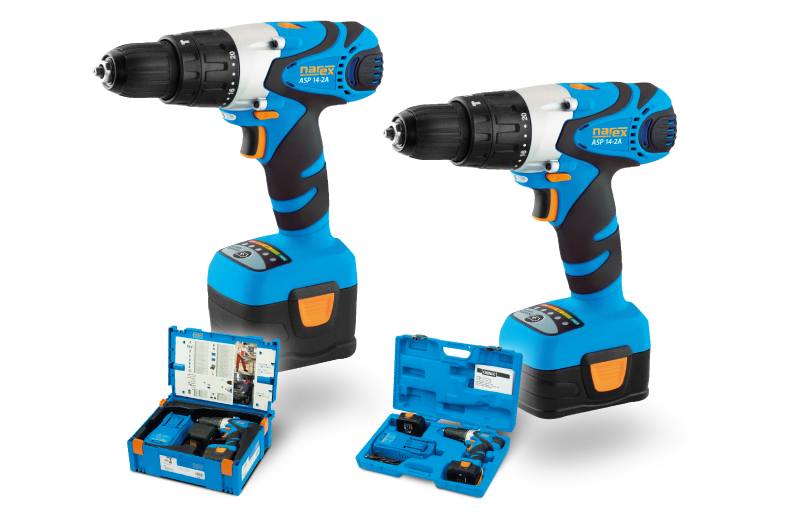

ASP 14-2A

Technical specification
Battery voltage / capacity	14,4 V / 1,5 Ah	14,4 V / 3,0 Ah
Battery charging time	cca 25 min	cca 45 min
Max. torque	54 Nm	54 Nm
Max. ø of drilling in steel / wood	10 / 35 / 10 mm	10 / 35 / 10 mm
No-load speed, speed 1/2	0–460 / 0–1 600 min^-1	0–460 / 0–1 600 min^-1
Max. number of impacts, speed 1/2	6 900 / 24 000 min^-1	6 900 / 24 000 min^-1
Chuck span	0,8–10 mm	0,8–10 mm
Spindle thread	1/2"-20 UNF	1/2"-20 UNF
Weight	1,8 kg	2,0 kg

Suitable for construction, erection and assembly operations, realization of distribution lines and for works at height
A new stronger motor and a robust all-metal gearbox increase the tightening /torque performance and extend service life of the device
The aluminium gearbox casing and the multi-seated spindle increase stability and rigidity of the whole gear unit
Universal use when drilling into hard or soft building materials thanks to effective impact mechanism and robust two-stage gearbox
21-level torque setting facilitates tightening and improves continuity of labour
Electronics with protection from overload protects the motor and extends its service life
New Li-Ion batteries with a higher capacity offer a longer battery lifetime; no memory effect, environment friendly
Integrated LED for working zone lighting

	ASP 14-2A 1,5 Ah	ASP 14-2A 3,0 Ah
Orded No.	65 404 830	65 404 831
Rec. retail price excl. VAT	204,16 €	290,00 €

Scope of supply: 2 accumulator batteries, charger AN-UNI C, transport case or systainer

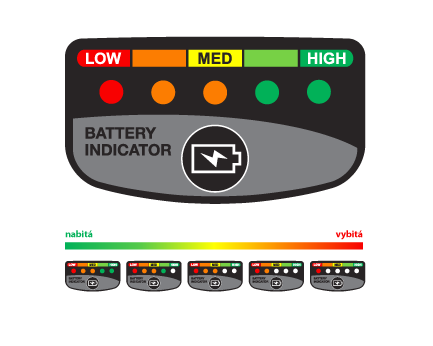

Practical indicator of the state of battery charging grants – thanks to a well-arranged large contact panel – immediate information about residual capacity of the battery, thus enabling to avoid undesirable downtimes caused by recharging of “empty” accumulator batteries, which is important mainly in technologically and time demanding applications. The panel is available well and can also be controlled easily in protective gloves.

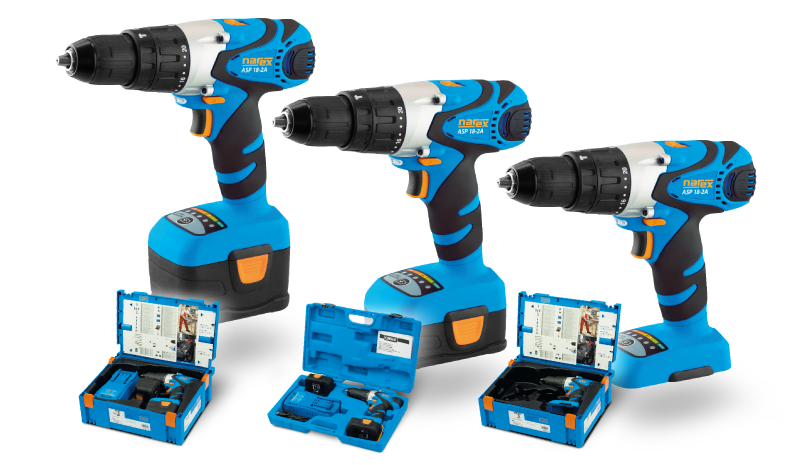

Cordless impact screwdrivers 18 V

ASP 18-2A

Technical specification
Battery voltage / capacity	18,0 V / 1,5 Ah	18,0 V / 3,0 Ah
Battery charging time	cca 25 min	cca 45 min
Max. torque	60 Nm	60 Nm
Max. ø of drilling in steel / wood	13 / 40 / 13 mm	10 / 40 / 13 mm
No-load speed, speed 1/2	0–460 / 0–1 600 min^-1	0–460 / 0–1 600 min^-1
Max. number of impacts, speed 1/2	6 900 / 24 000 min^-1	6 900 / 24 000 min^-1
Chuck span	1,5–13 mm	1,5–13 mm
Spindle thread	1/2"-20 UNF	1/2"-20 UNF
Weight	2,0 kg	2,3 kg

Suitable for construction, erection and assembly operations, realization of distribution lines and for works at height
A new stronger motor and a robust all-metal gearbox increase the tightening /torque performance and extend service life of the device
The aluminium gearbox casing and the multi-seated spindle increase stability and rigidity of the whole gear unit
Universal use when drilling into hard or soft building materials thanks to effective impact mechanism and robust two-stage gearbox
21-level torque setting facilitates tightening and improves continuity of labour
Electronics with protection from overload protects the motor and extends its service life.
New Li-Ion batteries with a higher capacity offer a longer battery lifetime; no memory effect, environment friendly
Integrated LED for working zone lighting

	ASP 18-2A 1,5 Ah	ASP 18-2A 3,0 Ah	ASP 18-2A Basic
Orded No.	65 404 834	65 404 835	65 404 833
Rec. retail price excl. VAT	221,66 €	308,33 €	133,33 €

Scope of supply: ASP 18-2A – 2 accumulator batteries, charger AN-UNI C, transport case or systainer; ASP 18-2A Basic – basic device without accumulator batteries and charger, systainer

Space-saving and extraordinary resistant „Systainer“ will be appreciated not only by the users who often move on the sites and spent a significant part of the working day by preparation and transportation / displacement of the necessary equipment, but also by the users who prefer a well-arranged and safe storage of devices, though they are at their hand immediately.
Simple and well-thought-out system of systainer interconnection saves time and facilitates transportation; layout of the internal space respects the frequently neglected needs of trouble-free storage of the basic accessories or other working extras.

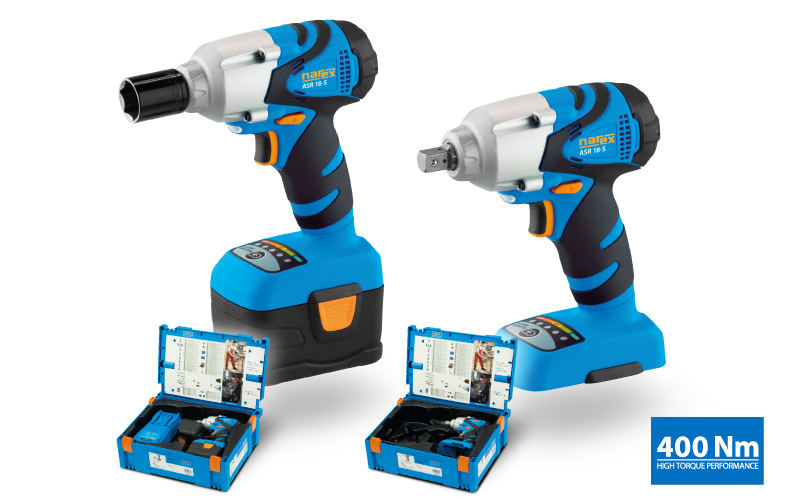

Cordless impact drivers
18 V – „COMPACT“

ASR 18-S

Technical specification
Battery voltage / capacity	18,0 V / 3,0 Ah
Battery charging time	cca 45 min
Max. torque	400 Nm
Scope of application (metric screws)	M12–M18
Max. ø of drilling in steel / wood	8 / 18 mm
Revolutions	0–2 000 min^-1
Number of impacts	0–3 000 min^-1
Tool clamping	1/2" vnější čtyřhran
Weight	2,0 kg

The most powerful cordless impact driver in the „COMPACT“ class
Suitable for industrial production, installation, assembly and maintenance
A new 4-pole motor offers max. performance and torque for tightening and loosening solid screw joints and anchoring assemblies
The impact device mechanism enables effective screwing/tightening without any risk of zero back impact
Electronics with protection from overload protects the motor and extends its service life
New Li-Ion batteries with a higher capacity offer a longer battery lifetime; no memory effect, environment friendly
Reducing adapter for use of screwing bits and drills with E6.3 fixing
Integrated LED for working zone lighting

	ASR 18-S 3,0 Ah	ASR 18-S Basic
Orded No.	65 404 840	65 404 837
Rec. retail price excl. VAT	341,66 €	166,66 €

Scope of supply: ASR 18-S – 2 accumulator batteries 3.0 Ah, charger AN-UNI C, reducing adapter, systainer; ASR 18-S Basic – basic device without accumulator batteries and charger, reducing adapter, systainer

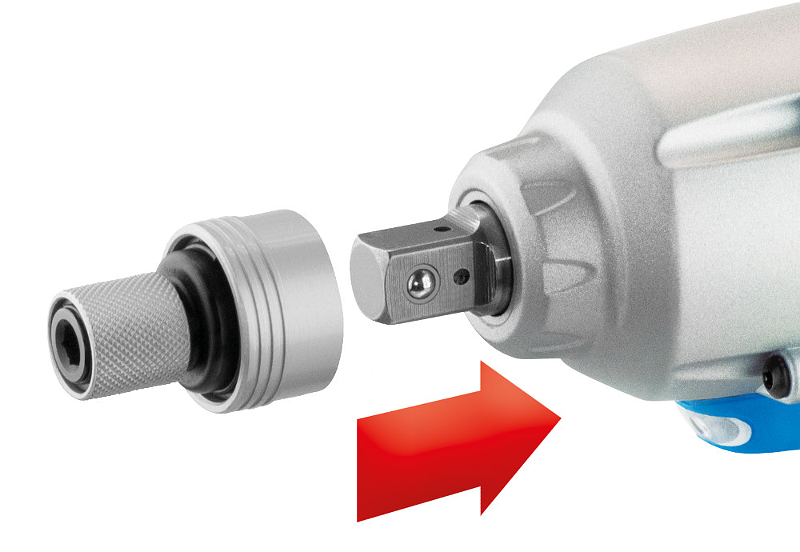

Compact reducing adapter enables simple and a very quick conversion of the driver spindle from ½" square to ¼" hexagon, thus expanding possibilities of this device and extending variability of its applications mainly in the sectors of building anchoring engineering and metal part connection. Thanks to its all-metal structure the reducing adapter is very stable and copes reliably with extreme load transferred from the device. Compact shape, low weight and short dimensions of the adapter extend working radius of the device.

Cordless impact drivers
18 V – „HIGH TORQUE“

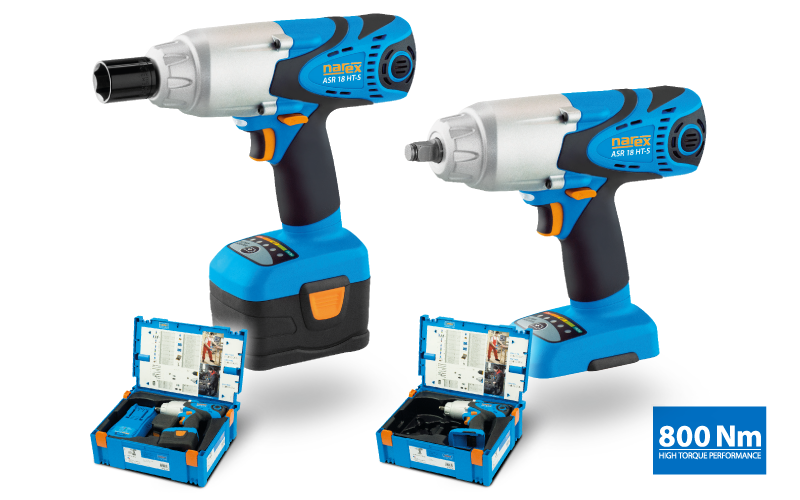

ASR 18 HT-S

Technical specification
Battery voltage / capacity	18,0 V / 3,0 Ah
Battery charging time	cca 45 min
Max. torque	800 Nm
Scope of application (metric screws)	M12–M24
Revolutions	0–1 700 min^-1
Number of impacts	0–2 000 min^-1
Tool clamping	1/2" vnější čtyřhran
Weight	3,2 kg

The most powerful cordless impact driver in the „High Torque“ class
Suitable for industrial production, assembly and maintenance
A new 4-pole motor offers max. performance and torque for tightening and loosening solid and firm screw joints
The impact device mechanism enables effective screwing/tightening without any risk of zero back impact
Electronics with protection from overload protects the motor and extends its service life
New Li-Ion batteries with a higher capacity offer a longer battery lifetime; no memory effect, environment friendly
Ergonomically shaped handle with softening rubberized extras improvs device holding, control and handling
Integrated LED for working zone lighting

	ASR 18 HT-S 3,0 Ah	ASR 18 HT-S Basic
Orded No.	65 404 844	65 404 842
Rec. retail price excl. VAT	408,33 €	233,33 €

Scope of supply: ASR 18 HT-S – 2 accumulator batteries 3.0 Ah, charger AN-UNI C, systainer ASR 18 HT-S Basic – basic device without accumulator batteries and charger, systainer

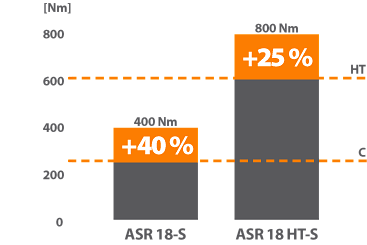

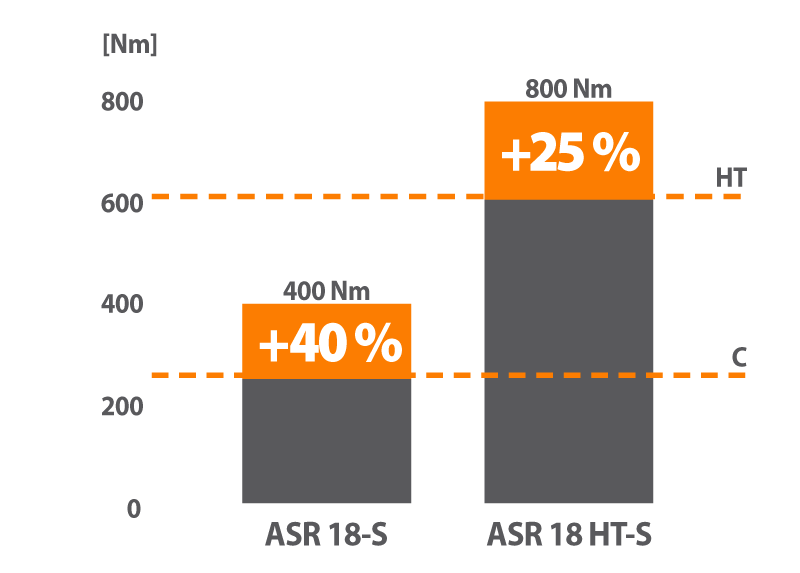

HT – the highest performance recorded till now in the HIGH TORQUE category
C – the highest performance recorded till now in the COMPACT category

A new series of 18V impact drivers for the most demanding applications exceeds the existing leaders materially and in all aspects, and brings unrivalled most powerful representatives with the lowest operating costs into the monitored sectors of the cordless impact drivers in the market. The well-thought-out and tuned design of these devices is based above all on the powerful four-pole motor and effective impact mechanism guaranteeing excellent and balanced results not only in the applications of firmly tightened screw joints. Compact and light-weight driver ASR 18-S reaches in the COMPACT category the performance by 40 % higher than the existing heavyduty leader; the robust and balanced driver ASR 18 HT-S reaches in the most demanding HIGH TORQUE class the performance by nearly 25 % higher than the existing leader.
