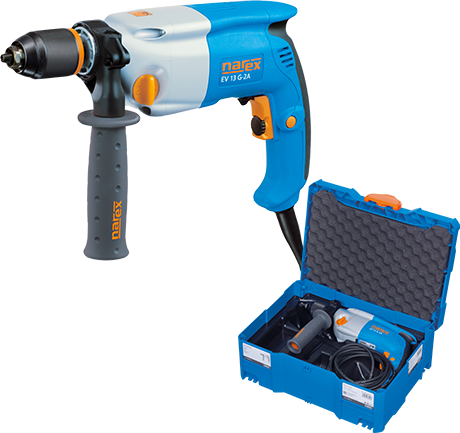

Scope of delivery: EV 13 G-2A – keyless chuck, auxiliary handle SOFTGRIP, stop bar for setting depth od drilling, systainer
Technical data | |
---|---|
Rated power input | 760 W |
Max. ø of drilling | |
in steel | 13 mm |
in aluminium | 20 mm |
in wood | 45 mm |
No-load speed | |
speed 1 | 0–1 000 min−1 |
speed 2 | 0–3 050 min−1 |
Max. torque | |
speed 1 / 2 | 44 / 15 Nm |
Chuck range | 1,5–13 mm |
Clamping neck ø | 43 mm |
Thread on the spindle | 1/2"-20 UNF |
Weight | 2,6 kg |

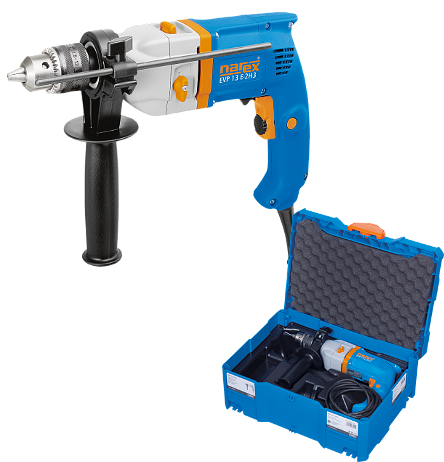

Scope of delivery: EVP 13 E-2H3 – gear chuck, stop bar for setting depth of drilling, auxiliary handle, cup for stem holding in the spindle, cardboard box or systainer
Technical data | |
---|---|
Rated power input | 650 W |
Max. ø of drilling | |
in steel | 13 mm |
in aluminium | 16 mm |
in wood | 35 mm |
ve zdivu | 16 mm |
No-load speed | |
speed 1 | 0–1 100 min−1 |
speed 2 | 0–3 000 min−1 |
Údery příklepu naprázdno | |
speed 1 | 0–22 000 min−1 |
speed 2 | 0–60 000 min−1 |
Max. torque | |
speed 1 / 2 | 29 / 10 Nm |
Chuck range | 1,5–13 mm |
Clamping neck ø | 43 mm |
Thread on the spindle | 1/2"-20 UNF |
Weight | 1,8 kg |

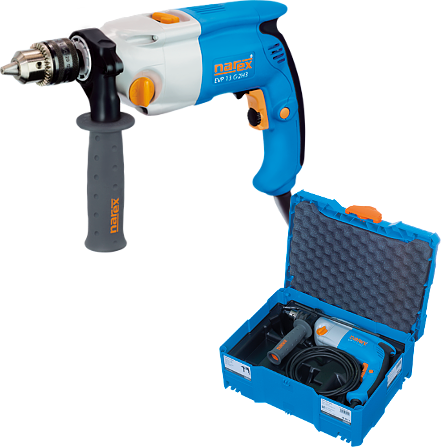

Scope of delivery: EVP 13 G-2H3 – gear chuck, stop bar for setting depth of drilling, auxiliary handle SOFTGRIP, SYSTAINER T-LOC II
Technical data | |
---|---|
Rated power input | 760 W |
Max. ø of drilling | |
in steel | 13 mm |
in aluminium | 20 mm |
in wood | 45 mm |
in masonry | 20 mm |
No-load speed | |
speed 1 | 0–1 100 min−1 |
speed 2 | 0–3 050 min−1 |
No-load impacts | |
speed 1 | 0–22 000 min−1 |
speed 2 | 0–61 000 min−1 |
Max. torque | |
speed 1 / 2 | 44 / 15 Nm |
Chuck range | 1,5–13 mm |
Clamping neck ø | 43 mm |
Thread on the spindle | 1/2"-20 UNF |
Weight | 2,5 kg |

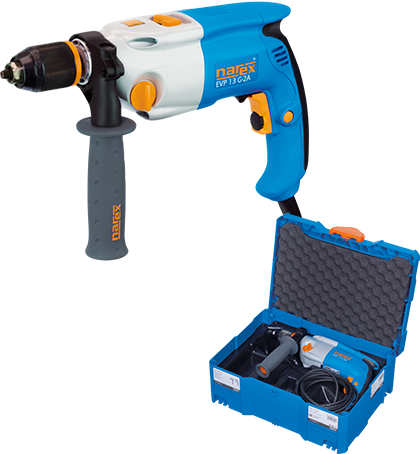

Scope of delivery: EVP 13 G-2A – keyless chuck, stop bar for setting depth of drilling, auxiliary handle SOFTGRIP, systainer
Technical data | |
---|---|
Rated power input | 760 W |
Max. ø of drilling | |
in steel | 13 mm |
in aluminium | 20 mm |
in wood | 45 mm |
in masonry | 20 mm |
No-load speed | |
speed 1 | 0–1 100 min−1 |
speed 2 | 0–3 050 min−1 |
No-load impacts | |
speed 1 | 0–22 000 min−1 |
speed 2 | 0–61 000 min−1 |
Max. torque | |
speed 1 / 2 | 44 / 15 Nm |
Chuck range | 1,5–13 mm |
Clamping neck ø | 43 mm |
Thread on the spindle | 1/2"-20 UNF |
Weight | 2,6 kg |

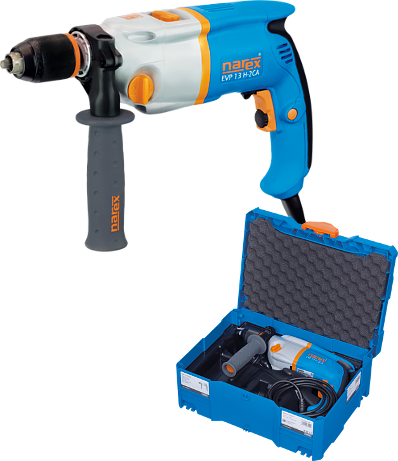

Scope of delivery: EVP 13 H-2CA – keyless chuck, stop bar for setting depth of drilling, auxiliary handle SOFTGRIP, systainer
Technical data | |
---|---|
Rated power input | 1 100 W |
Max. ø of drilling | |
in steel / in aluminium / in wood / in masonry | 16 / 24 / 45 / 24 mm |
No-load speed | |
speed 1 | 0–1 000 min−1 |
speed 2 | 0–2 800 min−1 |
No-load impacts | |
speed 1 | 0–20 000 min−1 |
speed 2 | 0–56 000 min−1 |
Max. torque | |
1.rychlost | 65 Nm* |
speed 2 | 22,5 Nm* |
Chuck range | 1,5–13 mm |
Clamping neck ø | 43 mm |
Thread on the spindle | 1/2"-20 UNF |
Weight | 2,8 kg |

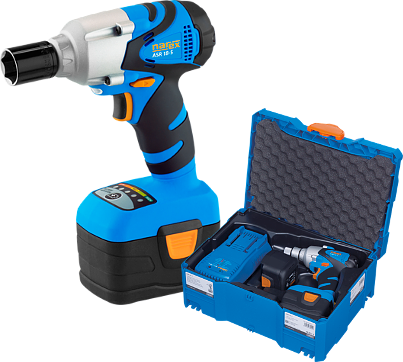

Scope of delivery: ASR 18-S – 2× battery AP 18 LP, charger AN–UNI C, adapter AD-ASR 14, systainer; ASR 18-S Basic – systainer, reducing adapter AD-ASR 14, battery and charger are not scope of delivery!
Technical data | |
---|---|
Battery voltage /capacity | 18,0 V / 3,0 Ah |
Battery charging time | ~45 min |
Max. torque | 400 Nm |
Scope of applications | M12–M18 |
Max. ø of drilling | |
in steel | 8 mm |
in wood | 18 mm |
No-load speed | 0–2 000 min-1 |
No-load strikes | 0–3 000 min-1 |
Clamping of tools | 1/2" |
Weight | 2,0 kg |

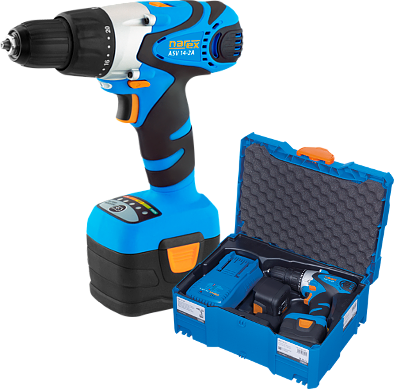

Scope of delivery: ASV 14-2A – 2× battery AP 14 LE, charger AN–UNI C, carrying case; ASV 14-2A (SYS) – 2× battery AP 14 LP, charger AN–UNI C, systainer
Technical data | |
---|---|
Battery voltage /capacity | 14,4 V / 3,0 Ah |
Battery charging time | ~45 min |
Max. ø of drilling | |
in steel | 10 mm |
in wood | 35 mm |
No-load speed | |
speed 1 | 0–460 min−1 |
speed 2 | 0–1 600 min−1 |
Max. torque | 54 Nm |
Chuck range | 0,8–10 mm |
Thread on the spindle | 1/2"-20 UNF |
Weight | 1,8 kg |

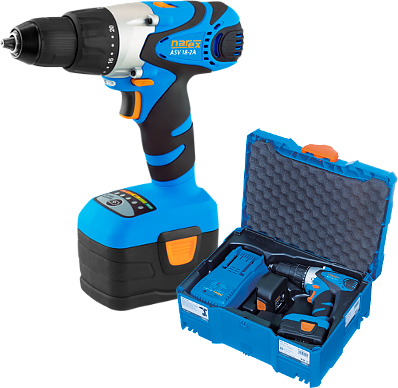

Scope of delivery: ASV 18-2A – 2× battery AP 18 LE, charger AN=UNI C, SYSTAINER T-LOC II
Technical data | |
---|---|
Battery voltage /capacity | 18,0 V / 3,0 Ah |
Battery charging time | ~45 min |
Max. ø of drilling | |
in steel | 13 mm |
in wood | 40 mm |
No-load speed | |
speed 1 | 0–460 min-1 |
speed 2 | 0–1 600 min-1 |
Max. torque | 60 Nm |
Chuck range | 1,5–13 mm |
Thread on the spindle | 1/2''-20 UNF |
Weight | 2,2 kg |

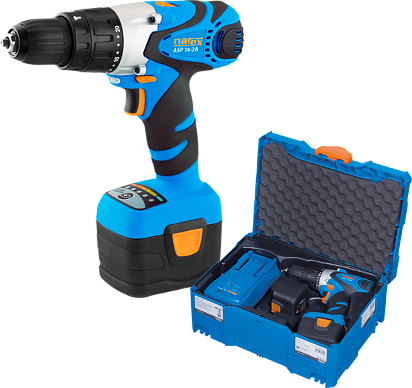

Scope of delivery: ASP 14-2A – 2× battery AP 14 LE, charger AN–UNI C, carrying case; ASP 14-2A (SYS) – 2× battery AP 14 LP, charger AN–UNI C, systainer
Technical data | |
---|---|
Battery voltage /capacity | 14,4 V / 3,0 Ah |
Battery charging time | ~45 min |
Max. ø of drilling | |
in steel | 10 mm |
in wood | 35 mm |
in masonry | 10 mm |
No-load speed | |
speed 1 | 0–460 min−1 |
speed 2 | 0–1 600 min−1 |
No-load strikes | |
speed 1 | 0–6 900 min−1 |
speed 2 | 0–24 000 min−1 |
Max. torque | 54 Nm |
Chuck range | 0,8–10 mm |
Thread on the spindle | 1/2"-20 UNF |
Weight | 2,0 kg |

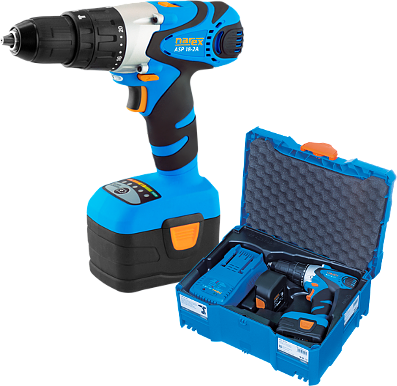

Scope of delivery: ASP 18-2A – 2× battery AP 18 LE, charger AN–UNI C, SYSTAINER T-LOC II
Technical data | |
---|---|
Battery voltage /capacity | 18,0 V / 3,0 Ah |
Battery charging time | ~45 min |
Max. ø of drilling | |
in steel | 13 mm |
in wood | 40 mm |
in masonry | 13 mm |
No-load speed | |
speed 1 | 0–460 min-1 |
speed 2 | 0–1 600 min-1 |
No-load impact | |
speed 1 | 0–6 900 min-1 |
speed 2 | 0–24 000 min-1 |
Max. torque | 60 Nm |
Chuck range | 1,5–13 mm |
Thread on the spindle | 1/2''-20 UNF |
Weight | 2,3 kg |
Technical data | |
---|---|
Battery voltage | 18,0 V |
Max. ø of drilling | |
in steel / in wood | 13 / 40 mm |
No-load speed | |
speed 1 / 2 | 0–460 / 0–1 600 min−1 |
Max. torque | 60 Nm |
Chuck range | 1,5–13 mm |
Thread on the spindle | 1/2"-20 UNF |

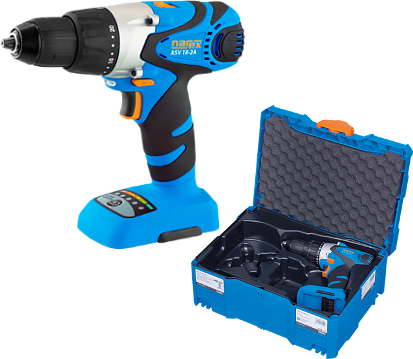

Scope of delivery: ASV 18-2A Basic – systainer, battery and charger are not scope of delivery!
Technical data | |
---|---|
Battery voltage | 18,0 V |
Max. ø of drilling | |
in steel / in wood / in masonry | 13 / 40 / 13 mm |
No-load speed | |
speed 1 / 2 | 0–460 / 0–1 600 min−1 |
No-load strikes | |
speed 1 / 2 | 0–6 900 / 0–24 000 min−1 |
Max. torque | 60 Nm |
Chuck range | 1,5–13 mm |
Thread on the spindle | 1/2"-20 UNF |
Scope of delivery: ASP 18-2A Basic – systainer, battery and charger are not scope of delivery!
Technical data | |
---|---|
Battery voltage | 18,0 V |
Max. torque | 400 Nm |
Scope of applications | M12–M18 |
Max. ø of drilling | |
in steel / in wood | 8 / 18 mm |
No-load speed | 0–2 000 min−1 |
No-load strikes | 0–3 000 min−1 |
Clamping of tools | 1/2" |

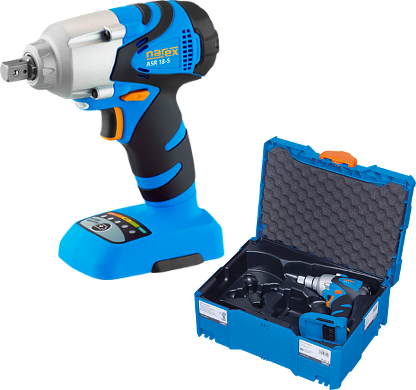

Scope of delivery: ASR 18-S Basic – systainer, reducing adapter AD-ASR 14, battery and charger are not scope of delivery!

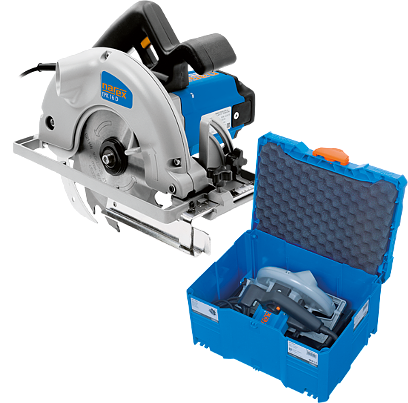

Scope of delivery: EPK 16 D – Saw disk with 12 tungsten carbide teeth, guide, clamping nut wrench, Allen wrench No. 5, SYSTAINER T-LOC III
Technical data | |
---|---|
Rated power input | 1 100 W |
No-load speed | 4 700 min-1 |
Cut depth | |
under the angle 90° | 0–55 mm |
under the angle 45° | 0–38 mm |
Angle cutting | 0°–45° |
Saw disk dimensions | 160 × 20/2,5 mm |
Weight | 3,4 kg |

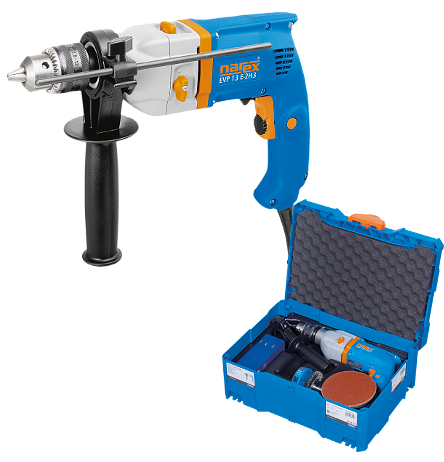

Scope of delivery: EVP 13 E-2H3 – gear chuck, stop bar for setting depth of drilling, auxiliary handle, cup for stem holding in the spindle, set of drill bits intometal HSS-R 6-parts (00 647 586), set of drill bits into stone 5-part (00 647 587), set of drill bits into wood 5-part (00 647 589), set of screw shanks 6-part (00 777 997), wire disk, rubber plate withVelcro – FastFix, 3× sandpaper with Velcro – FastFix, SYSTAINER SYS-TL 2
Technical data | |
---|---|
Rated power input | 650 W |
Max. ø of drilling | |
in steel | 13 mm |
in aluminium | 16 mm |
in wood | 35 mm |
in masonry | 16 mm |
No-load speed | |
speed 1 | 0–1 100 min-1 |
speed 2 | 0–3 000 min-1 |
No-load impacts | |
speed 1 | 0–22 000 min-1 |
speed 2 | 0–60 000 min-1 |
Max. torque | |
speed 1 / 2 | 29 / 10 Nm |
Chuck range | 1,5–13 mm |
Clamping neck ø | 43 mm |
Thread on the spindle | 1/2"-20 UNF |
Weight | 1,8 kg |

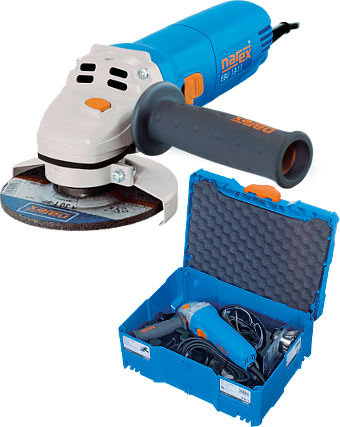

Scope of delivery: EBU 13-11 – EBU 13-11, 5x grinding wheel ø 125 / 6 mm, 1x multi-plate disk ø 125 / R60, 1x cup brush ø 65 mm, protective goggles, SYSTAINER T-LOC II, auxiliary handle SOFTGRIP, flange and clamping nut, clamping nut wrench
Technical data | |
---|---|
Rated power input | 1 100 W |
No-load speed | 10 000 min-1 |
Thread on the spindle | M14 |
Max. ø of disks | 125 mm |
Weight | 1,9 kg |
