| Technical data | |
|---|---|
| Rated input | 900 W |
| Drilling diameter max. | |
| helical drill bit | 13 mm |
| core drill bit | 32 mm |
| Idle speed | 600 min-1 |
| On-load speed | 450 min-1 |
| Stroke | 160 mm |
| Fixing | 19 mm Weldon (¾") |
| Magnet base dimensions | 168 × 84 mm |
| Weight | 12 kg |
| Order No. | 65 403 533 |
Scope of delivery: EVM 32 – cutting fluid reservoir, centre point for short core bits, hexagonal socket wrench, safety fixing belt, tool cas

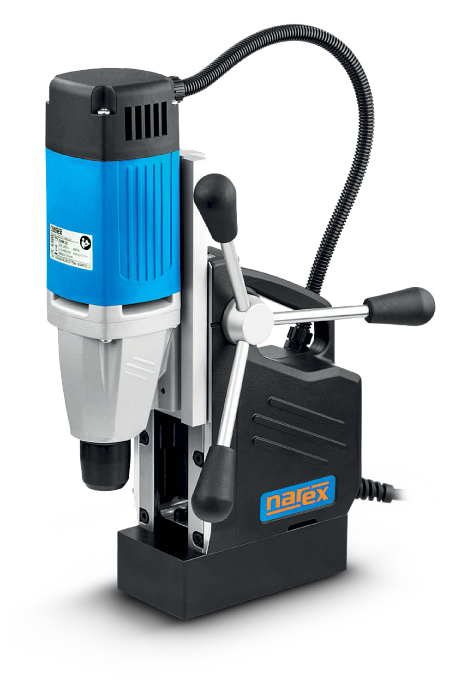

| EVM 32 | |
| Order No. | 65 403 533 |
| Recommended without VAT price | 605,83 € |

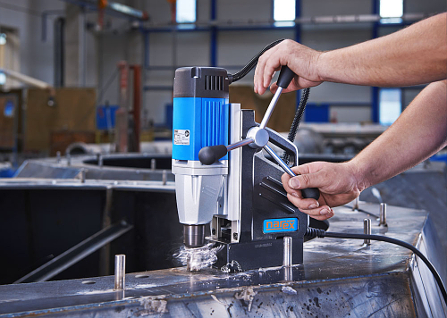

Magnetic drill is basically a combination of hand drilling machine and electromagnetic stand. Electromagnetic stand provides a tight connection with the workpiece during the whole process of drilling. Boreholes are precise, clean and always perpendicular to the workpiece plane. This technique is more comfortable and more effective than hand operated drilling.
