| Technical data | |
|---|---|
| Rated input | 1 050 W |
| Drilling diameter max. | |
| helical drill bit | 18 mm |
| core drill bit | 40 mm |
| Idle speed | |
| 1st speed | 400 min-1 |
| 2st speed | 730 min-1 |
| On-load speed | |
| 1st speed | 250 min-1 |
| 2st speed | 450 min-1 |
| Stroke | 160 mm |
| Fixing | MK 2, 19 mm Weldon (¾") |
| Magnet base dimensions | 168 × 84 mm |
| Weight | 13 kg |
| Order No. | 65 403 930 |
Scope of delivery: EVM 40-2 M – 19 mm Weldon (¾") adapter, cutting fluid reservoir, centre point for short core bits, hexagonal socket wrench, safety fixing belt, tool case

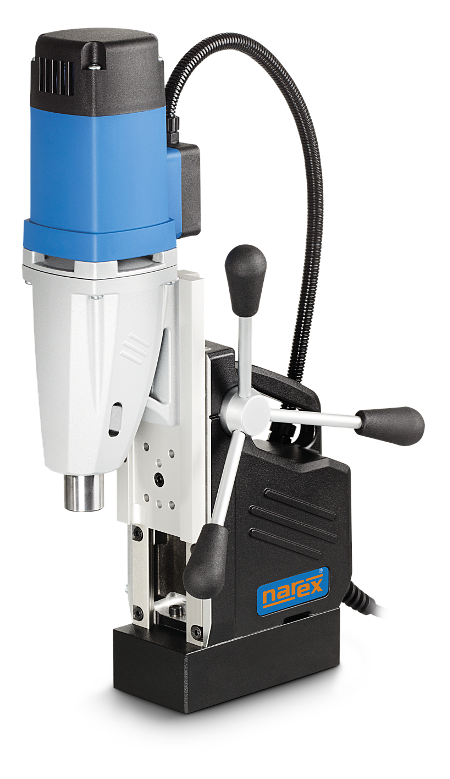

| EVM 40-2 M | |
| Order No. | 65 403 930 |
| Recommended without VAT price | 908,33 € |

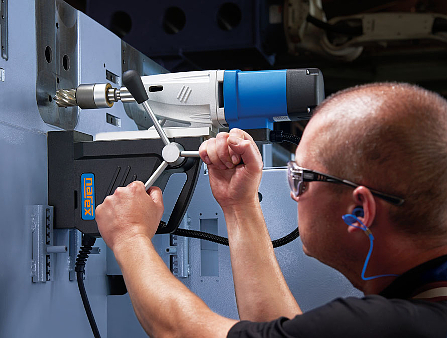

The drills is designed for use only in a stand and optimized for drilling into metal. This perfect set can be equipped not only with helical bits, but most importantly with core bits. Core bits drill out only the hole circumference, thus removing less material. This feature makes them more effective than helical bits and combined with a relatively small and agile machine they are able to bore bigger holes into sturdier materials.
