Magnetic core drill – 65403533 1

Magnetic core drill – 65403533 2 Magnetic core drill – 65403533 3 Magnetic core drill – 65403533 4 Magnetic core drill – 65403533 5 EVM 32

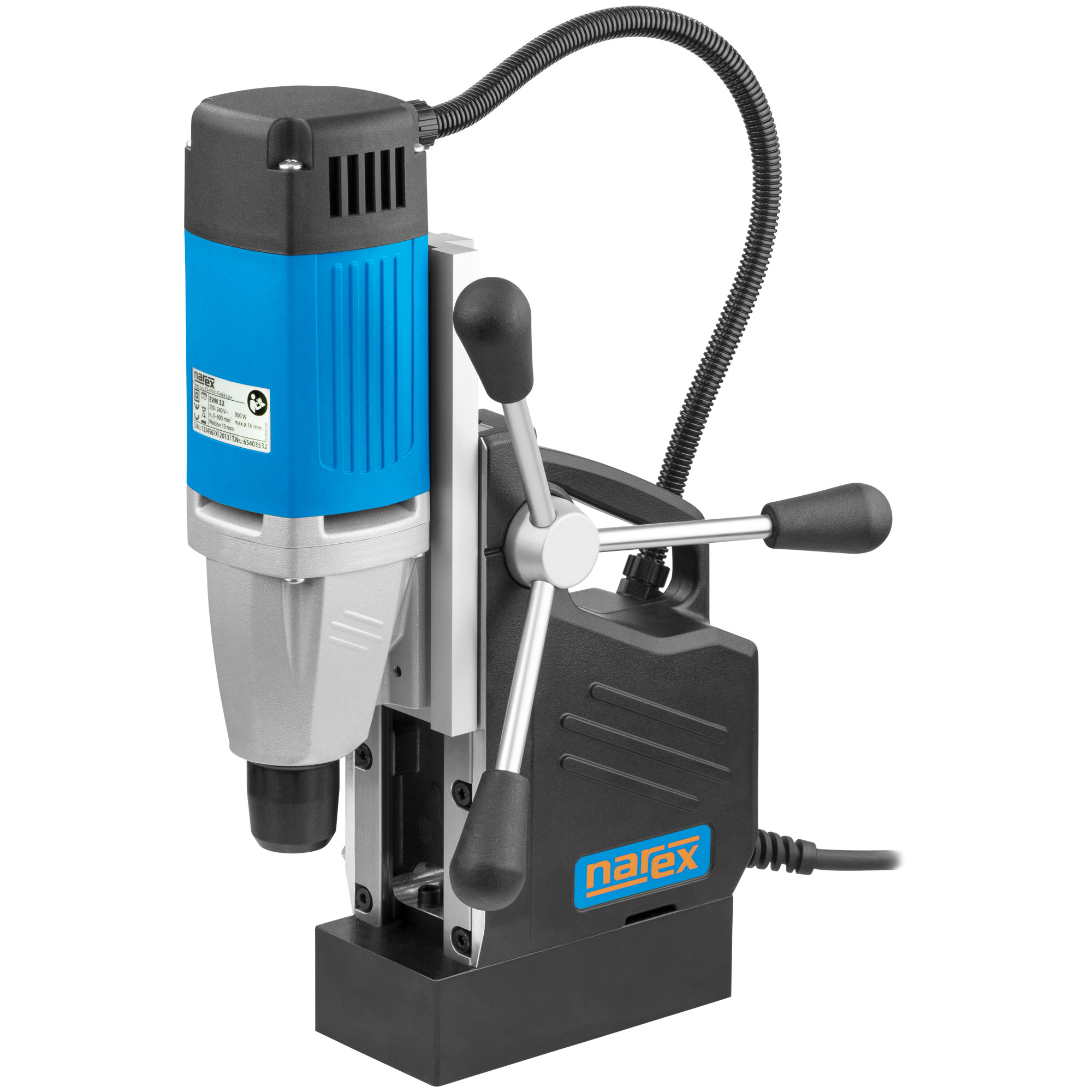

Magnetic core drill

Technical parameters
Voltage230 V
Rated power900 W
Max. drilling dia.
… Helical drill bit13 mm
… Core drill bit32 mm
No load speed600 rpm
stroke160 mm
Tool clamping19 mm Weldon (3/4")
Magnet base dimensions168 × 84 mm
Weight12,0 kg
EAN 138590163894131

more parameters

Order number65403533

Weldon Dovetail slide Cooling Electromagnet Restart protection

Find a shop

  • compact machine for industrial production, assemblies and maintenance
  • heavy-duty motor and specially arranged gearing for high performance and reliability
  • a high stroke range thanks to the robust and precise dovetail guide
  • extremely strong magnet for safe labour in each position
  • integrated cutting liquid feeding for precisely directed cool tooling
  • protection from unintended machine restart after for instance power blackout

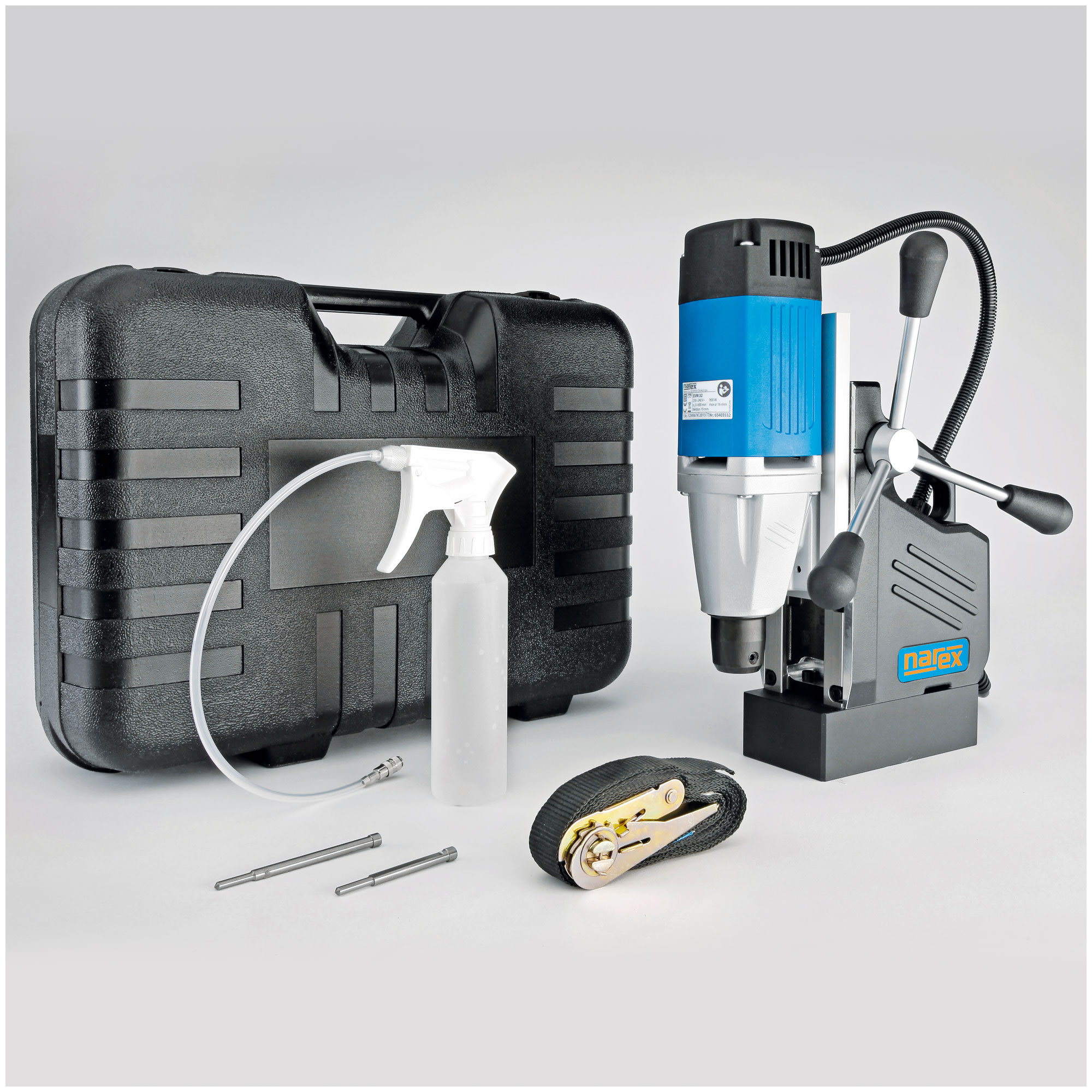

  • cutting fluid reservoir
  • centre point for short core bits
  • hexagon Allen key
  • safety belt

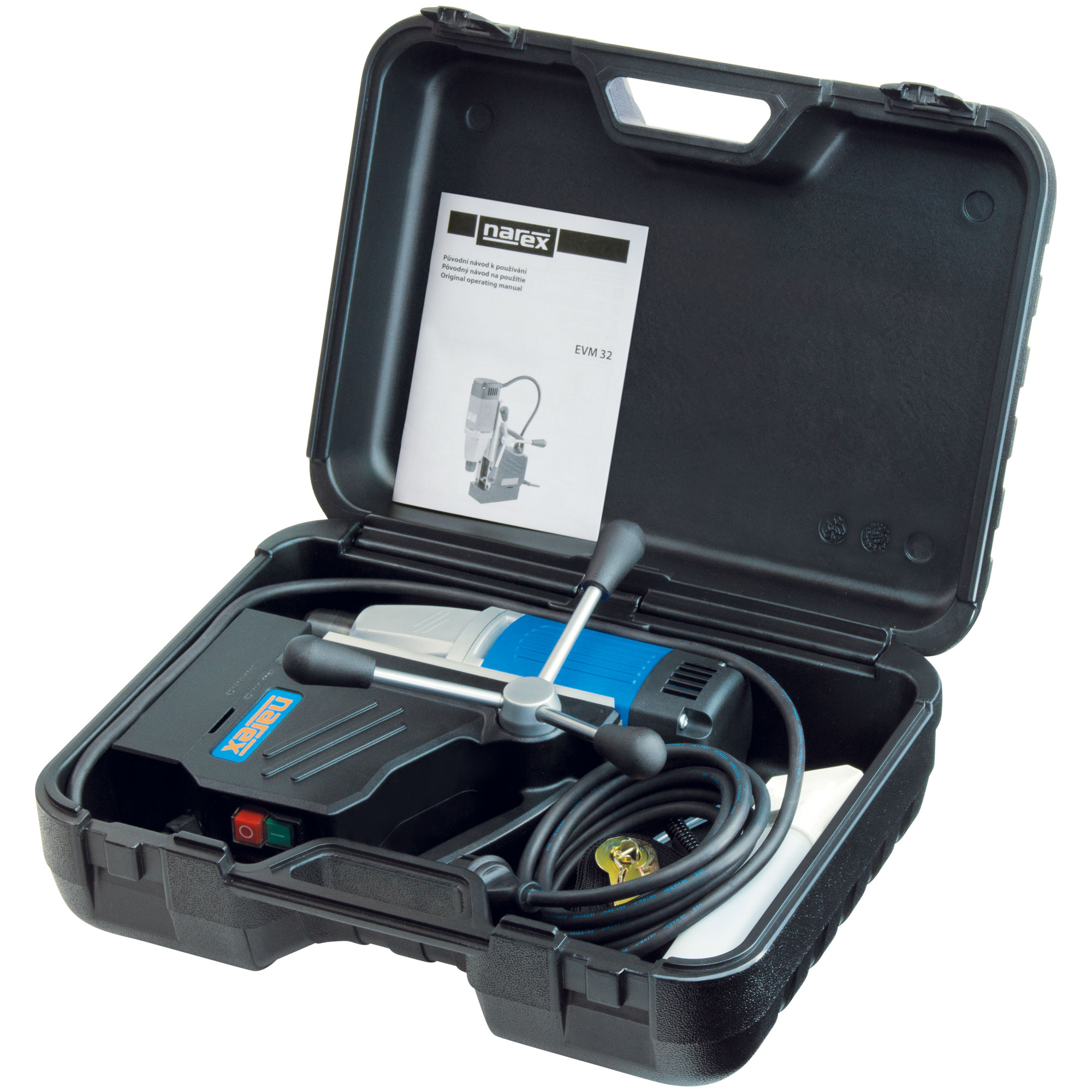

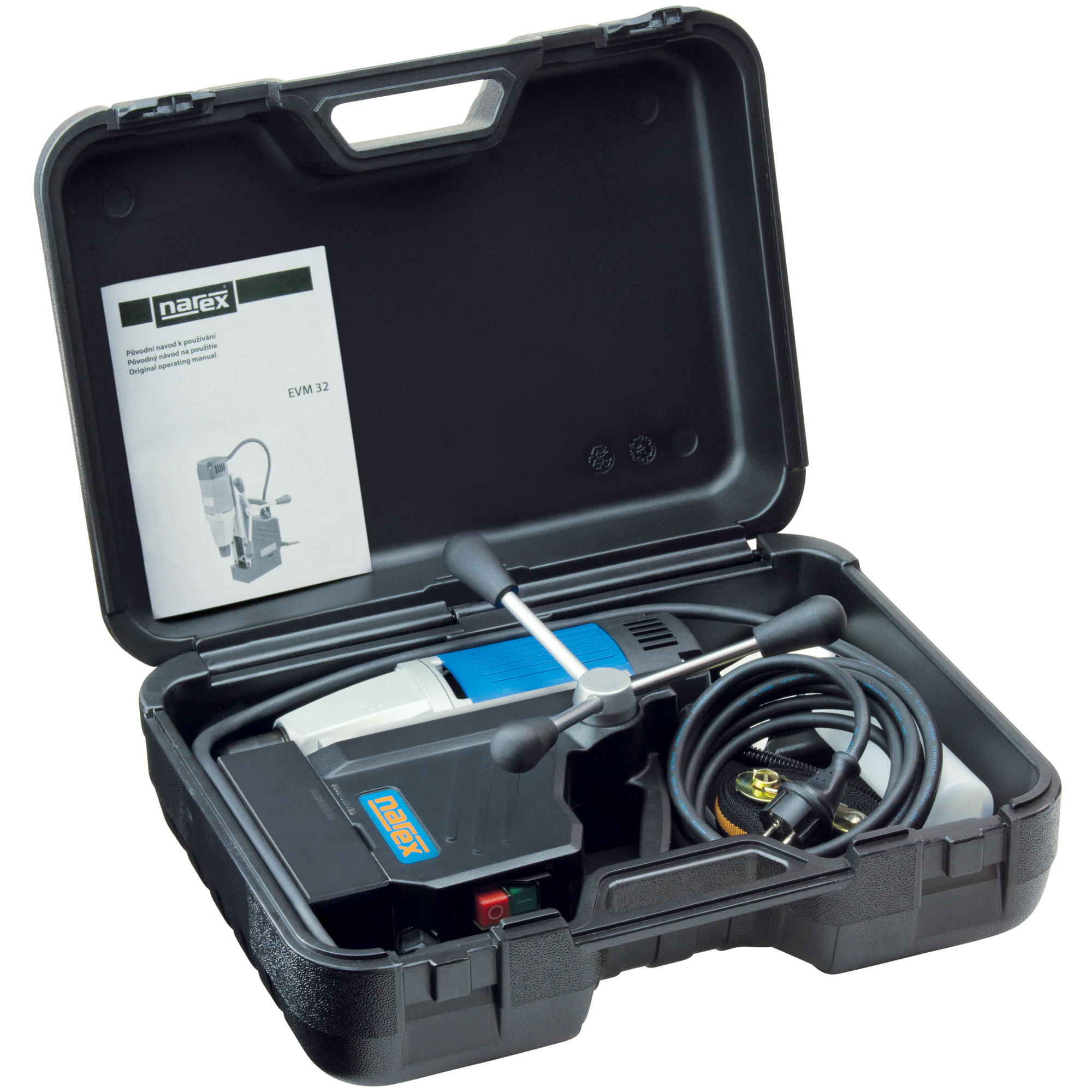

  • plastic carrying case
