EVM 40-2 M

Two-speed magnetic drill – 65403930 1

Two-speed magnetic drill – 65403930 2 Two-speed magnetic drill – 65403930 3 EVM 40-2 M

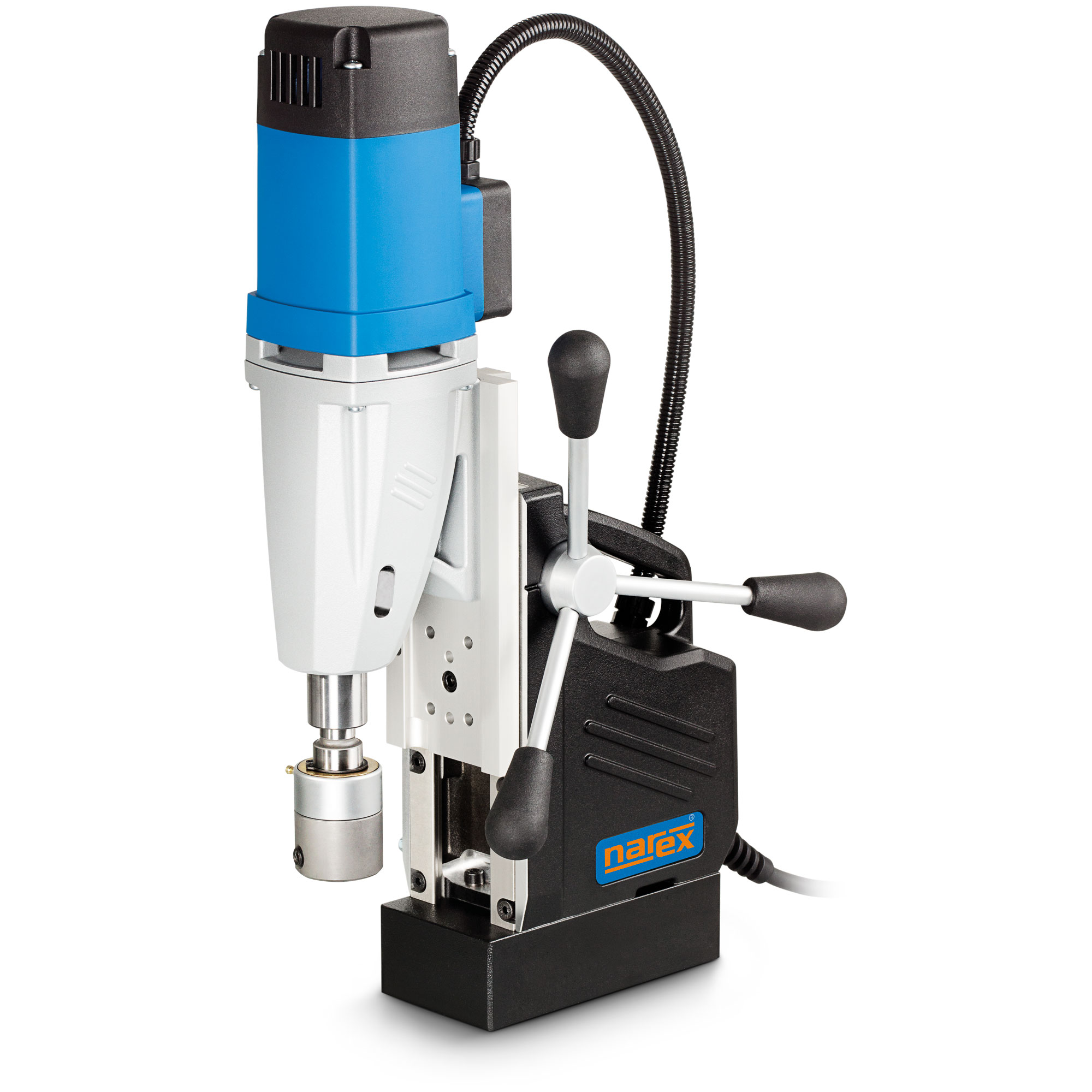

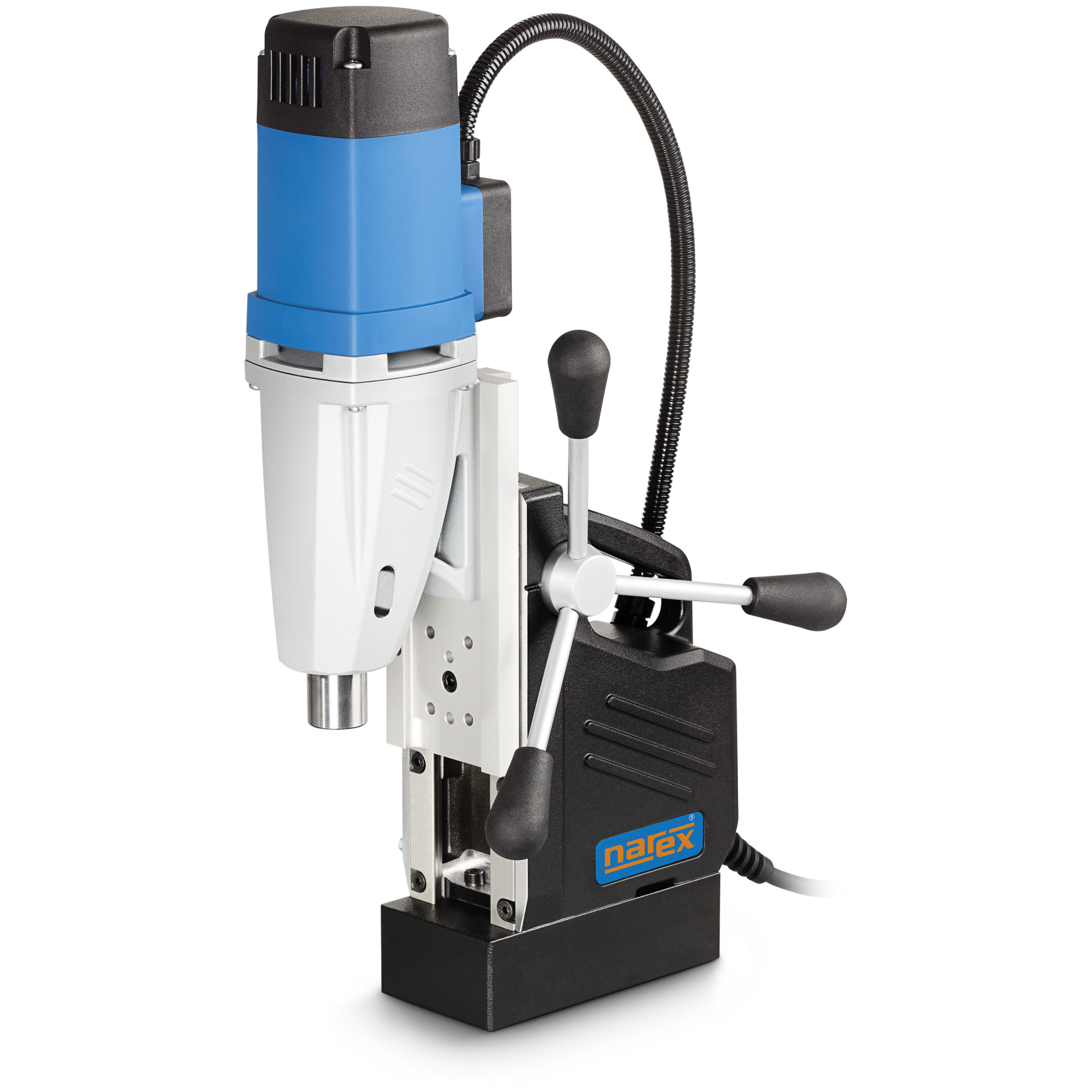

Two-speed magnetic drill

Technical parameters
Voltage230 V
Rated power1 050 W
Max. drilling dia.
… Helical drill bit18 mm
… Core drill bit40 mm
No load speed
… 1st speed300 rpm
… 2nd speed600 rpm
stroke160 mm
Tool clampingMK2
Magnet base dimensions168 × 84 mm
Weight13,0 kg
EAN 138590163886617

more parameters

Order number65403930

Morse Mk 2 Two-speed gearbox Dovetail slide Cooling Electromagnet Restart protection

Find a shop

  • versatile tool for industrial manufacture, assembly and maintenance
  • direct fixing of tools equipped with MK 2
  • strong motor and sturdy two-speed gearbox for versatile applications
  • gears are mounted in stable aluminium casing for improved load capacity and longer life expectancy
  • a high stroke range thanks to the robust and precise dovetail guide
  • extremely strong magnet for safe labour in each position
  • integrated cutting liquid feeding for precisely directed cool tooling
  • protection against unintended switching of tool, e.g. in case of power outage
  • Weldon 19 mm (3/4") fixing
  • cutting fluid reservoir
  • centre point for short core bits
  • hexagon Allen key
  • safety belt
  • plastic carrying case
